If you continue to experience issues after performing the troubleshooting steps below, reboot the device by pressing and holding the reset button for 5 seconds. Reattempt the troubleshooting sequence. If the LED is unresponsive, contact Support.
Perform the troubleshooting steps for the issue observed:
If you experience battery issues or the Samsara dashboard reports Low Gateway Battery:
-
Replace the AG battery. For battery replacement instructions, see Replace AG51 Battery.
-
Ensure the Wake on Motion and Check-in Schedule settings are appropriate for the device.
To improve battery life, Samsara recommends a less frequent check-in frequency.
Use the following workflow for any of these issues observed:
-
No check-ins observed
-
No check-ins observed for longer than scheduled.
-
Missing Location GPS
-
Reporting as:
Requires InvestigationorGateway Offline
-
Ensure that the device is outside and avoid obstructions such as underground or enclosed structures (especially metal enclosures), heavily insulated buildings, bridges, and trees.
-
Ensure that the device has a clear view of the sky and is in an area with good cellular reception.
-

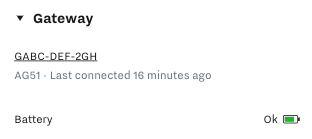

From the Samsara dashboard, verify the AG battery life from the asset details by selecting the asset from the Overview (
).If the gateway has not connected to the cloud in more than two weeks, the battery could be dead and needs to be replaced. For battery troubleshooting, see Battery issues.
-
To initiate a test ping, press and hold the button on the AG faceplate until the LED illuminates green, for no more than 2-3 seconds.
Warning
If you press the setup button for more than 4 seconds, the device will reboot. If the device reboots, wait five minutes before you restart the test ping in this step.
The LED flashes green every 3 seconds for up to 5 minutes while the device attempts to check in with the Samsara dashboard. After the device determines status, the LED displays a color LED for 5 seconds to indicate the connection status.
-
Perform the action that corresponds to the observed solid LED behavior:
Status: Unsuccessful connection: Cellular connection fail, GPS fail
-
Ensure that the device is outside and avoid obstructions such as underground structures, heavily insulated buildings, bridges, and trees.
-
Ensure that the device has a clear view of the sky and is within cellular range.
-
Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.
Status: Partial connection: Cellular connection OK, GPS fail
-
-
If you observe a solid green light after performing the troubleshooting steps above, verify successful connection in your Samsara dashboard (up to 5 minutes).
Use the following workflow for any of these issues observed:
-
Persistent
Approximate locationreported -
GPS unable to acquire signal
-
For missing GPS location issues, see Device check-in issues.
The AG51 reports an approximate location using Wi-Fi or a cellular connection if the device cannot acquire a GPS signal. To increase availability of GPS:
-
Move the device outdoors.
-
Ensure the device has a clear line of sight to the sky.
-
To initiate a test ping, press and hold the button on the AG faceplate until the LED illuminates green, for no more than 2-3 seconds.
Warning
If you press the setup button for more than 4 seconds, the device will reboot. If the device reboots, wait five minutes before you restart the test ping in this step.
The LED flashes green every 3 seconds for up to 5 minutes while the device attempts to check in with the Samsara dashboard. After the device determines status, the LED displays a color LED for 5 seconds to indicate the connection status.
-
Perform the action that corresponds to the observed solid LED behavior:
Status: Unsuccessful connection: Cellular connection fail, GPS fail
-
Ensure that the device is outside and avoid obstructions such as underground structures, heavily insulated buildings, bridges, and trees.
-
Ensure that the device has a clear view of the sky and is within cellular range.
-
Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.
Status: Partial connection: Cellular connection OK, GPS fail
-
