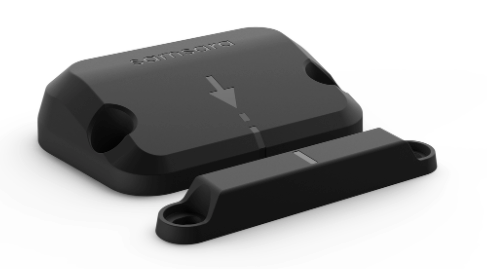

The Samsara Door Monitor (DM) is a wireless sensor that provides real-time visibility and security by detecting when doors open and close. Door Monitor sensors are easy to install on both swing (hinged) and roll-up doors without any complicated wiring or cables.
Samsara DMs are designed for harsh operating environments. Each IP67-rated weatherproof sensor is functional between -40°F to 140°F and protects against splashes, spray, dust, and other environmental wear and tear. Each sensor runs for 5+ years using a single AA battery.

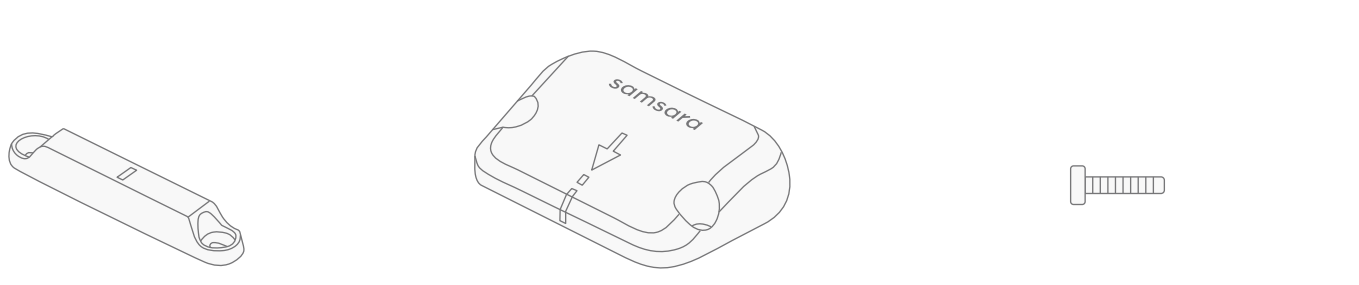

To install a Door Monitor sensor on a roll-up door, you will need:
|
1x Magnet |
1x Sensor |
4x Phillips rounded head metal drilling screws, 410 stainless steel, #8-18 thread size, 1/2" long (provided) |
-
Discard the magnet (or save for a non-sensor installation purpose).
-

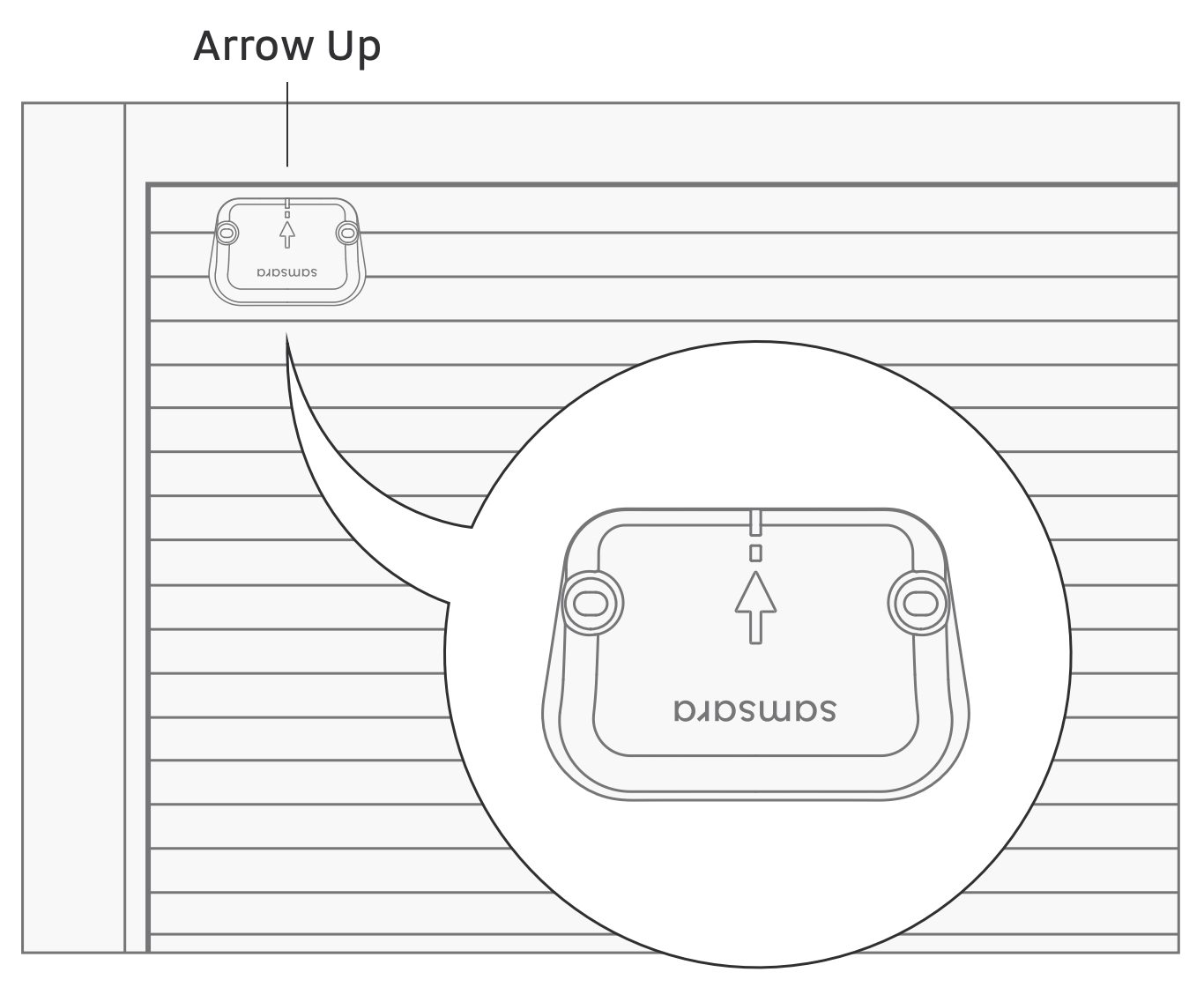

Place the sensor on the inside of the door, as high as possible.
Ensure that the arrow is facing upwards for the sensor to work properly.
-
Secure with the included adhesive.
-
(Optional) For increased stability, secure with the provided screws.
-
To verify that the sensor is reporting, log in to the Samsara dashboard and select Settings (
) > Devices > Devices > Sensors to view the sensors and signal status.
To install a Door Monitors sensor on a swing door, you will need:
|
1x Magnet |
1x Sensor |
4x Phillips rounded head metal drilling screws, 410 stainless steel, #8-18 thread size, 1/2" long (provided) |
-

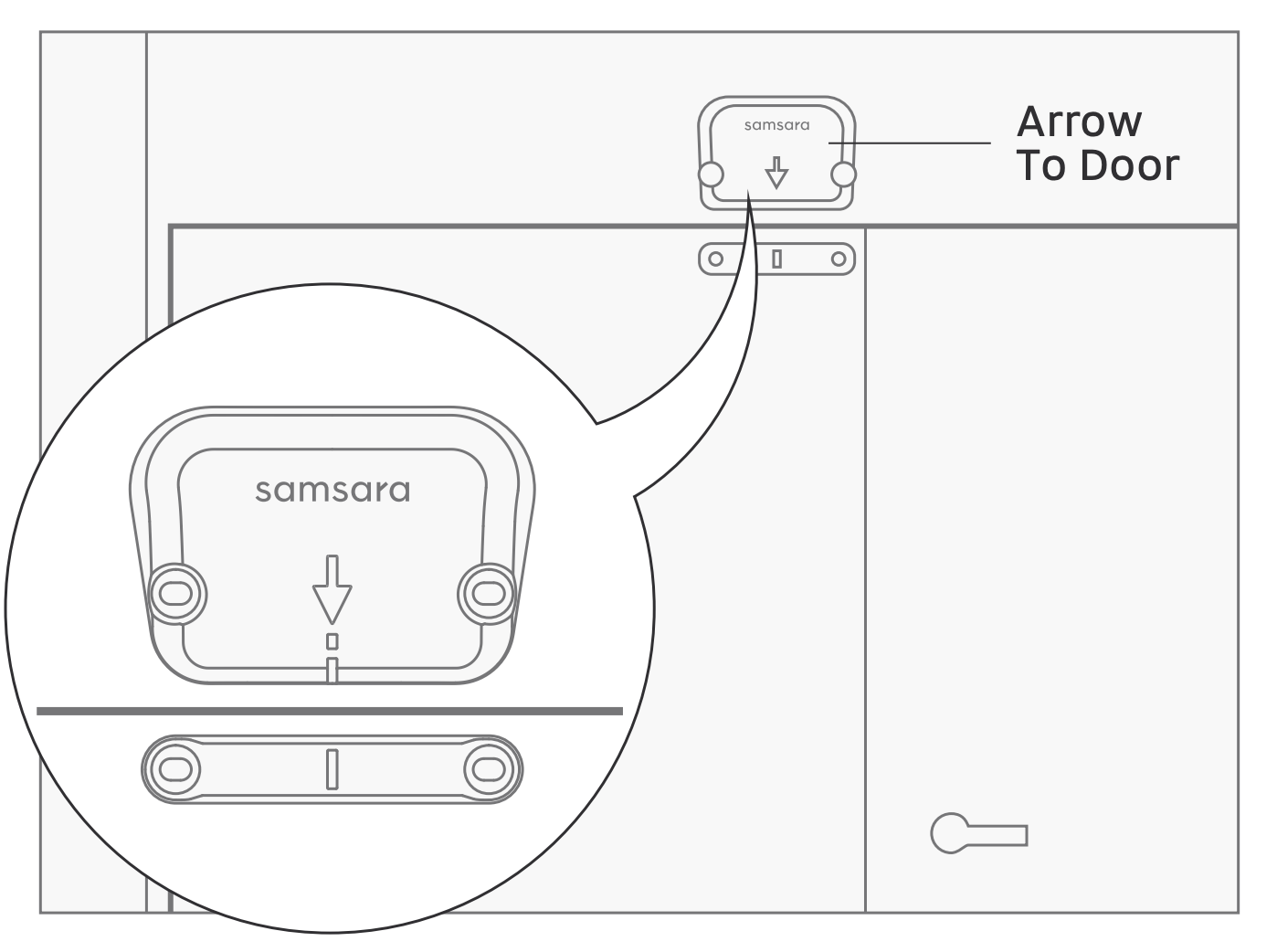

Place the provided magnet on the edge of the door.
-
Place the sensor on the inside of the door, as high as possible.
-
Place the sensor on the wall, orienting the arrow on the sensor down toward the door.
Note
The distance between the sensor and magnet must not exceed ½ inch.
-
Observe the light on the sensor. When aligned, the light on the sensor blinks.
-
Secure both the magnet and the sensor with the included adhesive.
-
(Optional) For increased stability, secure both with the provided screws.
-
To verify that the sensor is reporting, log in to the Samsara dashboard and select Settings (
For printable installation instructions, see the Door Monitor Install Guide (PDF).
